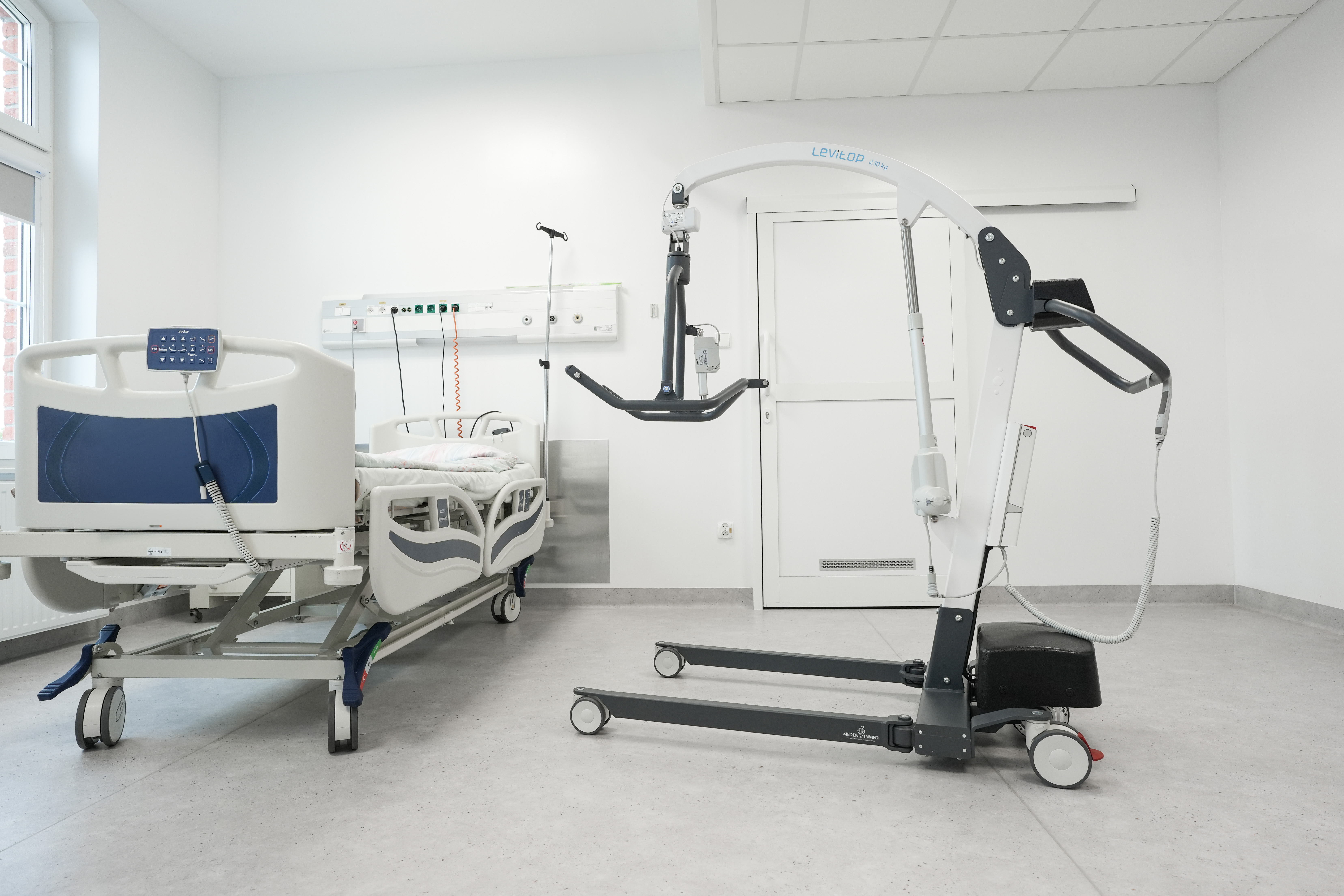

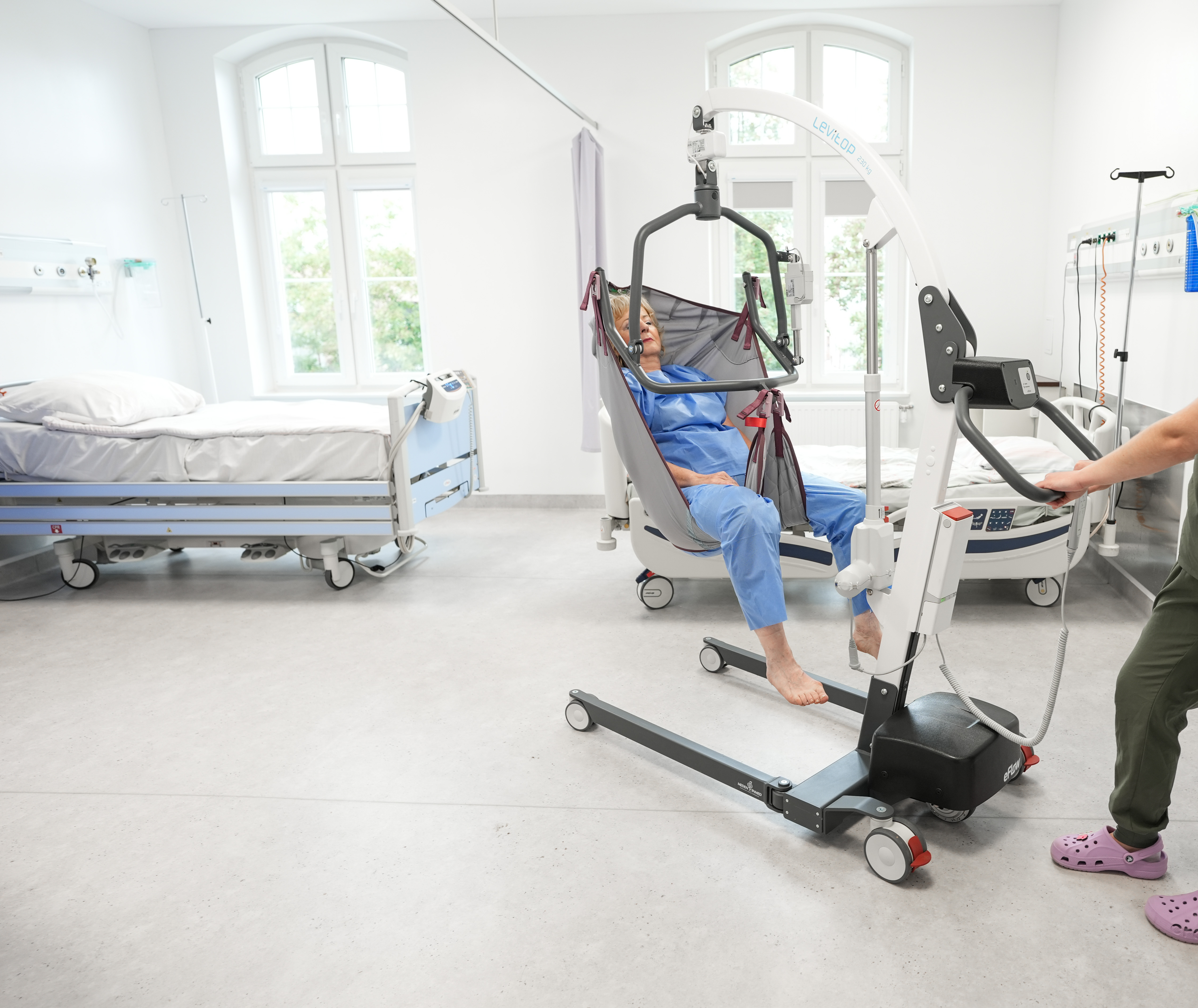

The Levitop Comfort Lift is a mobile lift designed to assist in lifting and transporting people with reduced mobility due to illness or dysfunction. It can be used to lift patients from a rehabilitation bed, bathtub, shower tray, or even directly from the floor with a suitable suspension.

The battery has a large capacity, allowing for approximately 20 full lifting and lowering cycles on a single charge with a maximum load of 230 kg.

Features

  • The lift is equipped with a four-point sling as standard
  •  The sling rotates 360o with the possibility of locking in four positions (90o)
  •  Wheels allowing maneuvering even in small and narrow spaces
  •  Rear wheels equipped with a brake
  •  Remote control included
  •  Adjustment of the width of the leg span with the remote control
  •  Emergency lowering mechanism to increase patient safety
 Base Legs Spreading: Electrical
 Max Safe Working Load [kg]: 230
 Lenght [cm]: 130
 Width [cm]: 67
 Height [cm]: 135
 Lifting range [cm]: 68 - 196
 Min. turning diameter [cm]: 144
 Min. base legs width (int./ext.) [cm]: 52 / 67
 Max. base legs width (int./ext.) [cm]: 103 / 118
 Base legs height [cm]: 11,5
 Wheels diameter (without / with lock) [cm]: 10 / 12,5
 Weight [kg]:  66
 Battery capacity [Ah]: 2,9
 Charger (integrated with control box) [V/Hz]: 100-240 / 50 / 60
 Remote control functions:
  • up / down
  • el. leg spread: outside / inside
  • overload indicator
  • battery charge status
  • service indicator
 Lifting speed (raising / lowering) [s]: 36 / 34
 Packed dimensions (L x W x H) [cm]: 150 x 80 x 155
