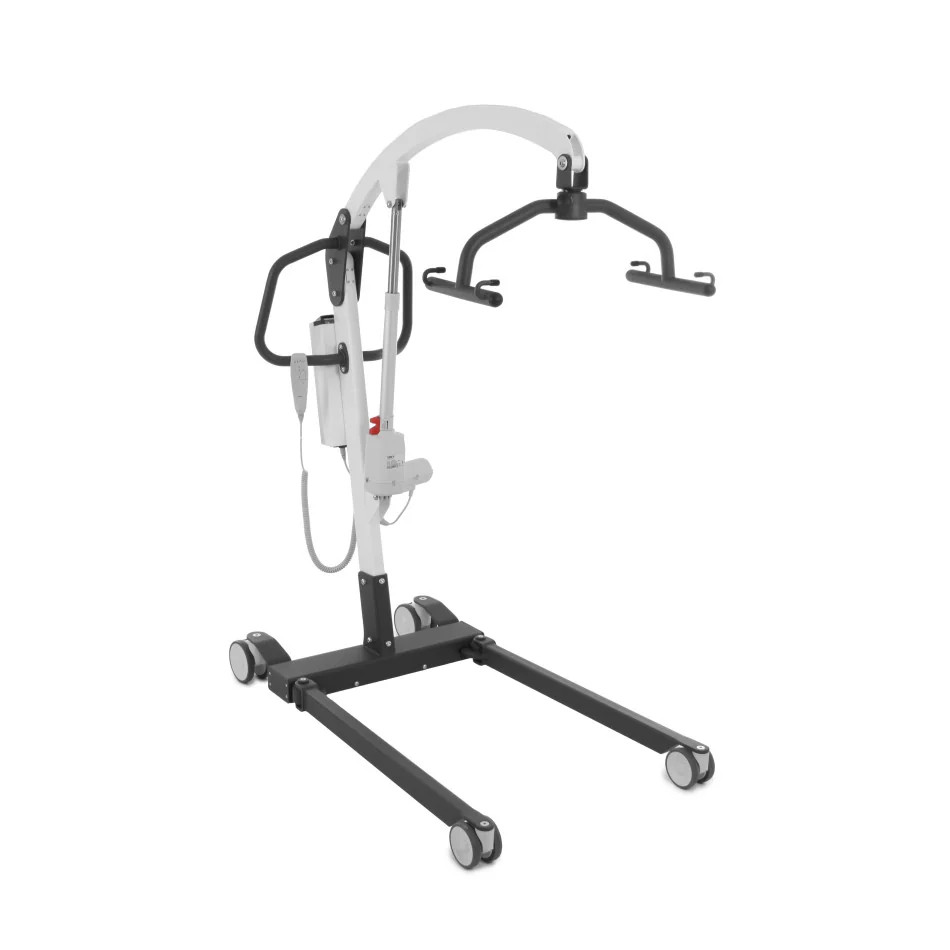

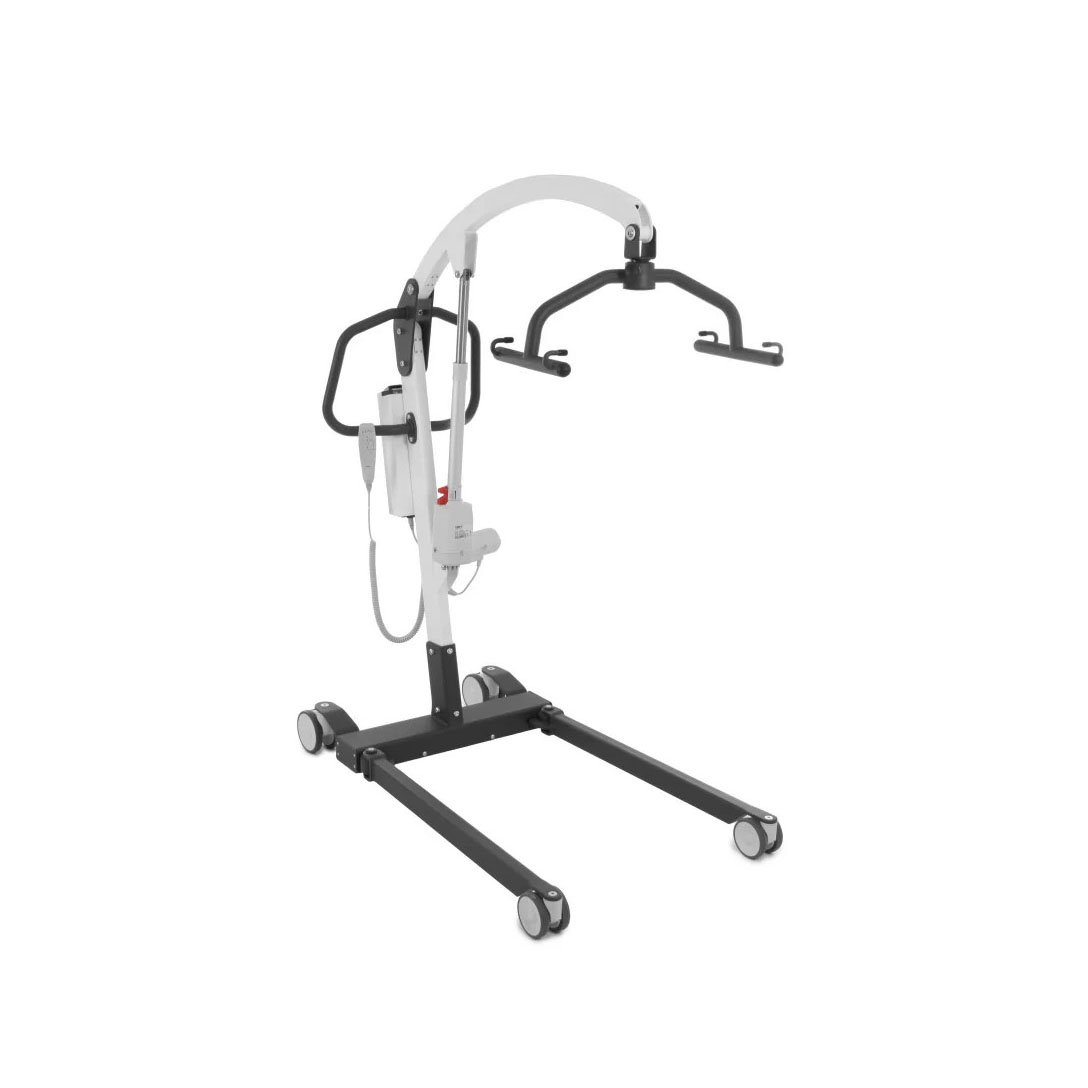

The Levitop Standard lift is a mobile lift designed to assist individuals with reduced mobility due to illness or dysfunction. The lift is sleek and fast, providing efficient and safe repositioning. It can lift and transport patients from a rehabilitation bed, bathtub or shower tray, or even directly from the floor with the appropriate suspension.
The battery has a large capacity and can perform approximately 20 full lifting and lowering cycles on a single charge, with a maximum load of 230 kg.
| Base Legs Spreading: | Electrical |
| Max Safe Working Load [kg]: | 230 |
| Lenght [cm]: | 152 |
| Width [cm]: | 67 |
| Height [cm]: | 135 |
| Lifting range [cm]: | 68 - 196 |
| Min. turning diameter [cm]: | 144 |
| Min. base legs width (int./ext.) [cm]: | 52 / 67 |
| Max. base legs width (int./ext.) [cm]: | 103 / 118 |
| Base legs height [cm]: | 11.5 |
| Wheels diameter (without / with lock) [cm]: | 10 / 12.5 |
| Weight [kg]: | 76 |
| Battery capacity [Ah]: | 2.9 |
| Charger (integrated with control box) [V/Hz]: | 100-240 / 50 / 60 |
| Remote control functions: |
|
| Lifting speed (raising / lowering) [s]: | 36 / 34 |
