System for dynamic unloading

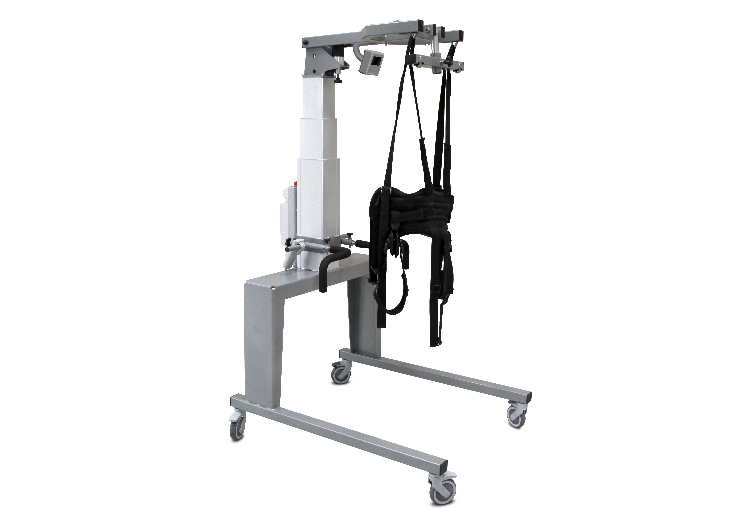

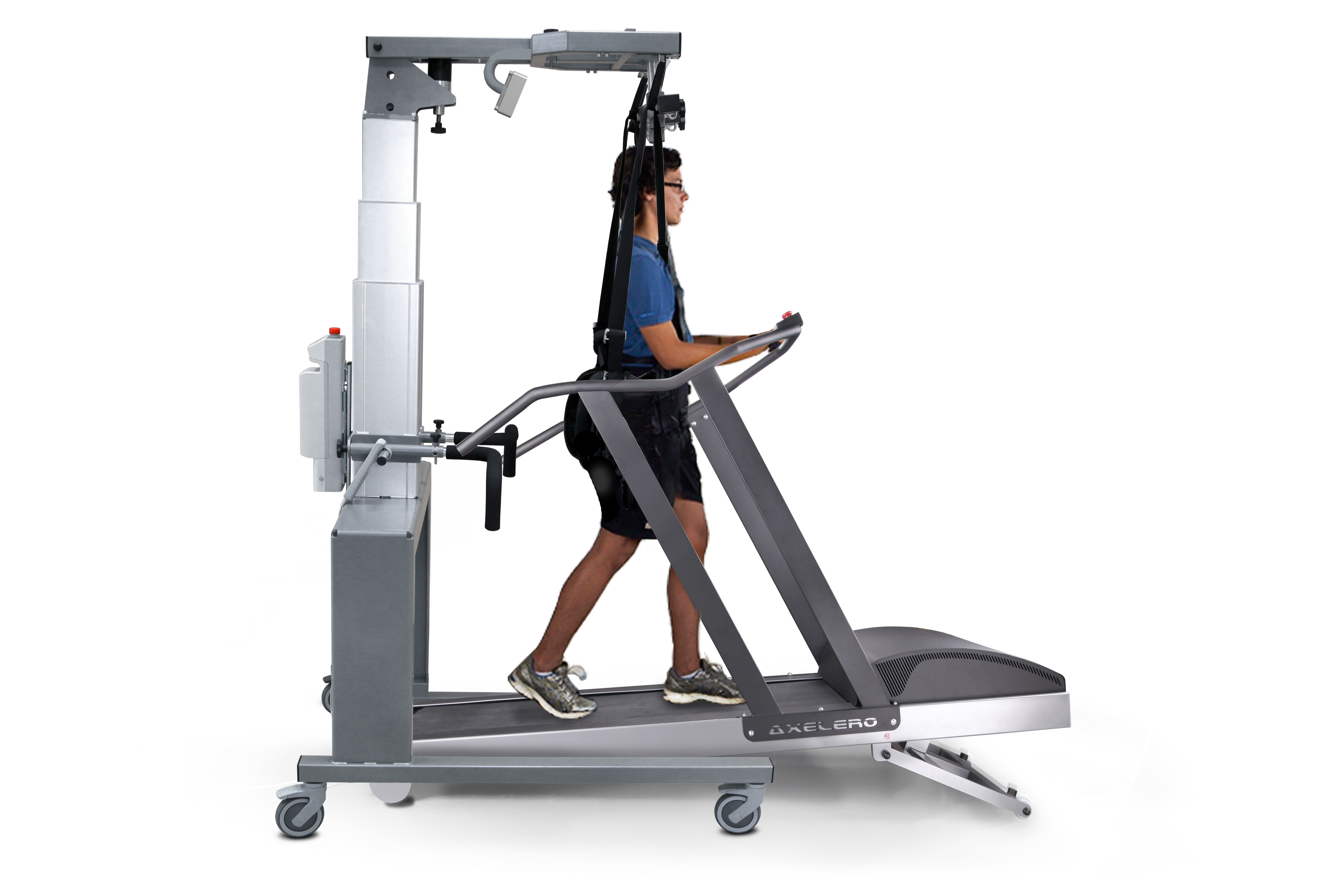

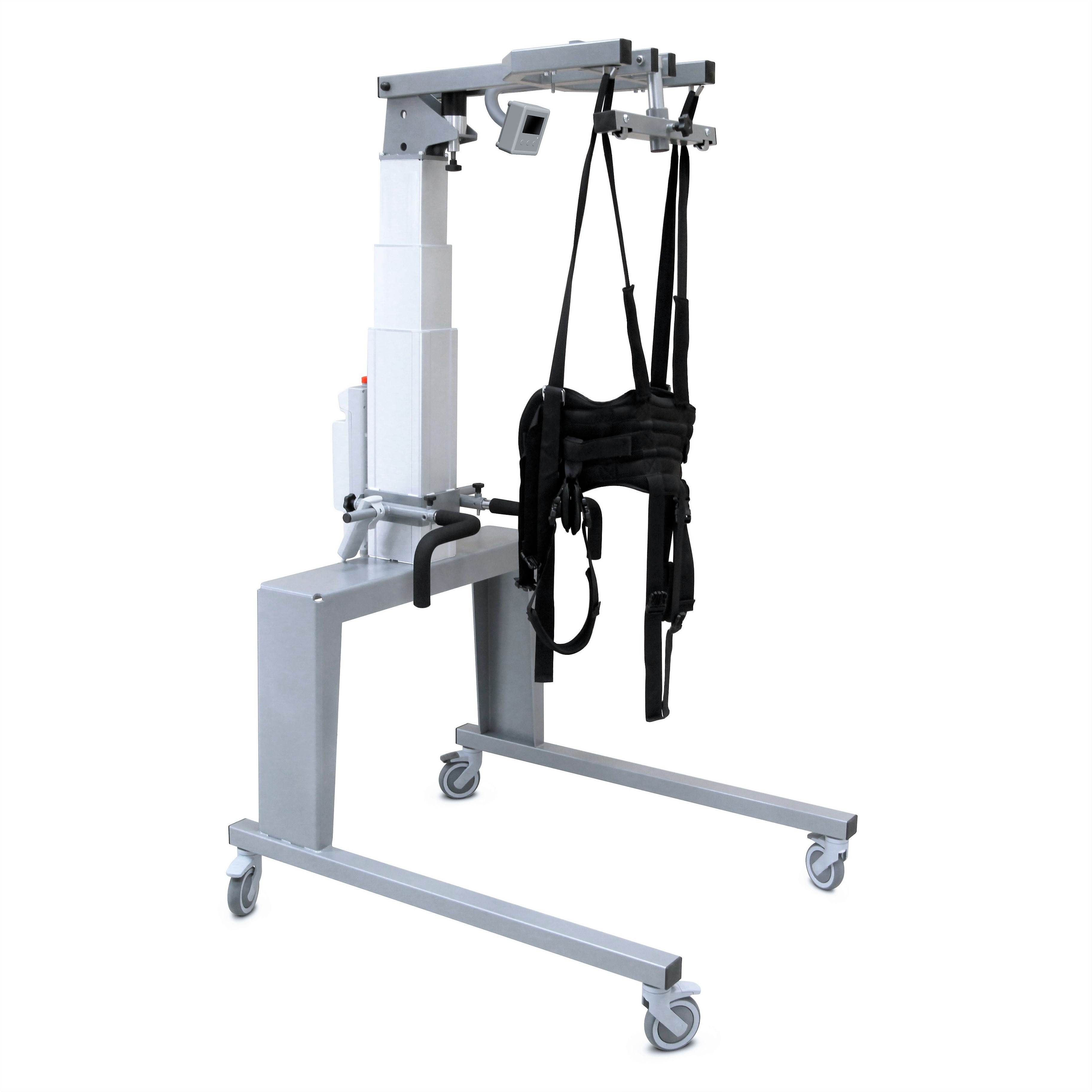

Eleveo is a training device for simultaneous control of unloading, posture and balance on a treadmill or firm surfaces. Systems providing dynamic unloading are a perfect solution for training patients in a wide range of gait disorders.

Please find more information here.

• battery-powered electric height adjustment (charged from a 230V wall outlet)
• two-point suspension with pelvis positioning and front-back inclination using 4 belts
• electronic measurement unit for monitoring lateral and overall unloading level and visual feedback for the patient
• four-wheel system with two wheels with full and two with directional brake (the wheels with directional brake allow for pre-setting the direction of movement prior to the treatment)
• the system can lower to 164 cm for an easy access to rooms with low doors (180 cm) or treatment of shorter patients
• 88 cm wide frame allows an easy passage through most doors
• maximum height of 234 cm
• patient height of up to 210 cm
• patient weight of up to 160 kg
• front, back and sideways gait training
• gait direction change possible without disconnecting the harness
• variable angle adjustable handlebars
• dynamic unloading system which allows for shifting the centre of gravity by at least 5 cm for a more physiological movement of the body during the training
• including one universal suspension harness


Width (cm)88/97
Height (cm)164 -234
Depth (cm)135
Weight (kg)100
Max load (kg)160
