Sprint training
Please find more information here.

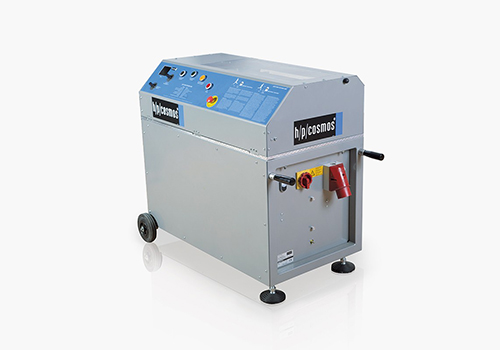

Applications | Electronic machine for sprint training with traction resistance or traction support (overspeed). The athlete is running on the 100 meter track, is either resisted or pulled |
Speed range | 0 ... 53 km/h (0 … 14.72 m/s) (0 … 32.93 mph) adjustable from 0 … 100% scale on the potentiometer |
Traction force / Traction resistance | 0 ... 294 Newton (0 ... 30 kg), Adjustable from 0 … 100% Analogue adjustment by means of the potentiometer (special versions with more traction force available on request) |
| Length of rope | Approx. 160 m (525 ft) |
Diameter of rope | 1.5 mm (0.06“) Load-carrying capacity of the rope (not the drive motor): max. 70 kg (686 N) |
Safety features | 1. Emergency-STOP switch on the control panel of the motor 2. Switch on logic, the speed regulator can only be activated at zero power (0%) and if the stabiliser is pulled out 3. Switch off if the rope breaks 4. Switch off by reaching the close danger area 5m in front of the device |
| Net weight | Approx. 184 kg (404 Ibs) |
